Technical Details

  • Slide title

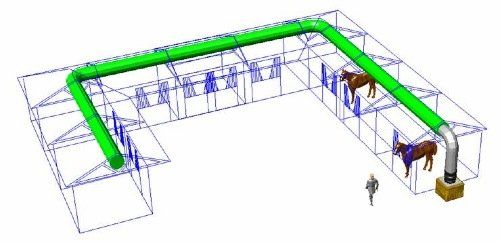

    Stable Design

    Button
  • Slide title

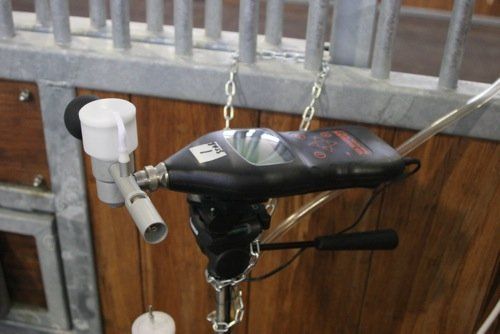

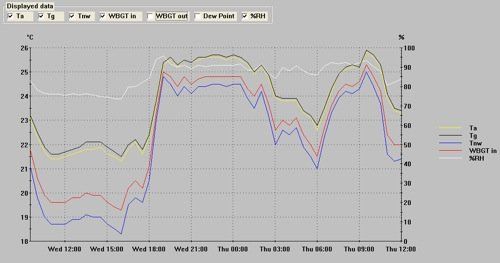

    WBGT temperature, humidity and radiation monitor.

    Button
  • Slide title

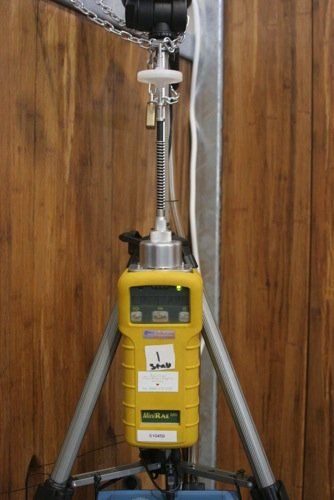

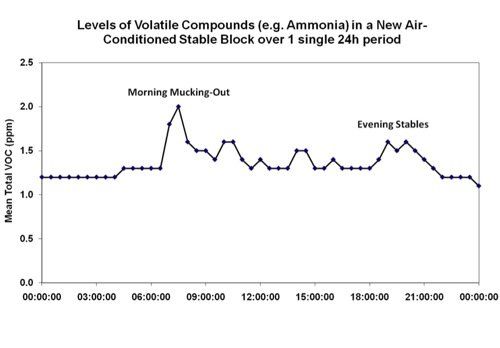

    Volatile Monitor.

    Button
  • Slide title

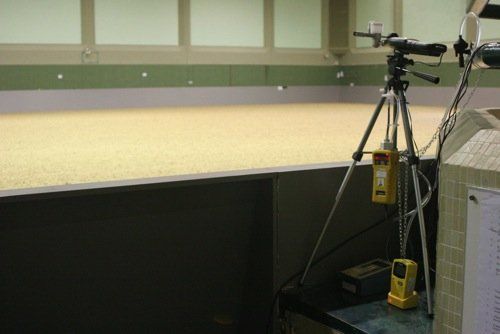

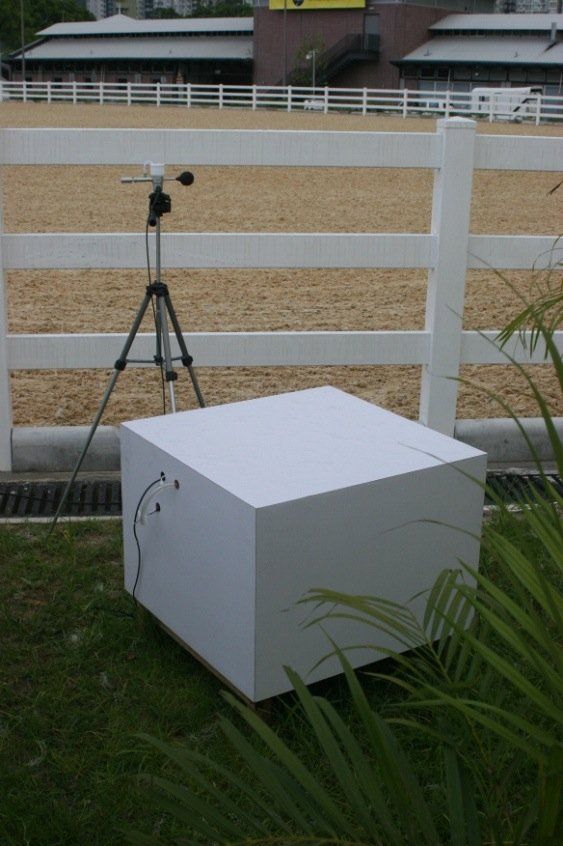

    System monitoring conditions in the indoor arena in Hong-Kong.

    Button
  • Slide title

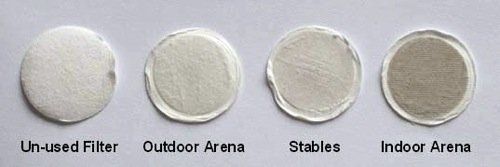

    Filters.

    Button
  • Slide title

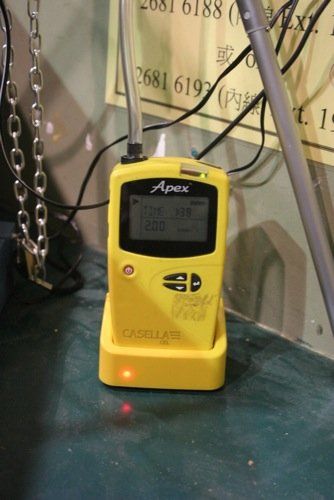

    Dust Sampler.

    Button
  • Slide title

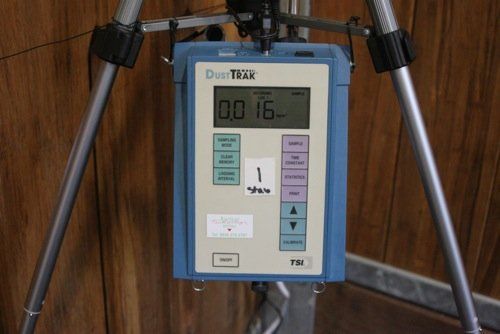

    Dust Monitor.

    Button
  • Slide title

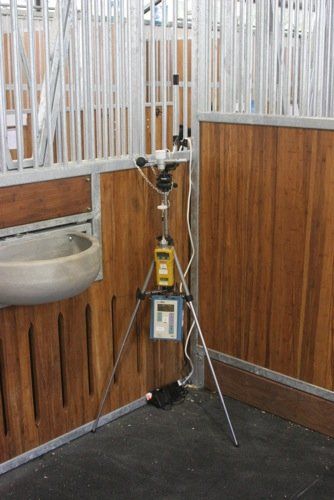

    Complete sampling and monitoring.

    Button
  • Slide title

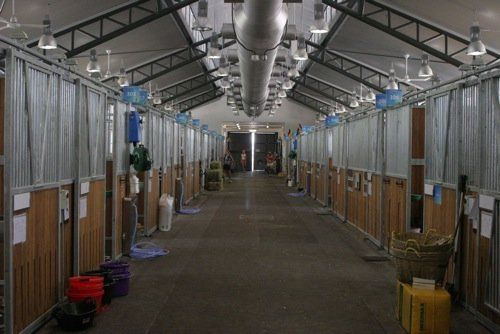

    Air-conditioned stables - Hong Kong.

    Button
  • Slide title


    Button
  • Slide title

    Mould Spores

    Button
  • Slide title


    Button
  • Slide title


    Button
  • Slide title


    Button

The cause of non-infectious airway inflammation in stabled horses is not completely understood, but it is more than likely that environmental dust and antigens have a significant part to play.

Most performance and working horses spend twenty two hours or more of every day stabled. With respect to comfort, horses and people are usually comfortable until the ambient temperature approaches 25°C, the upper limit of the thermo neutral zone. Once the temperature reaches this level, – horses and the people who look after them start to feel considerably less comfortable.

Horses that rest in a comfortable environment recover more quickly from transport, training and competition , as demonstrated at the 2008 Olympic Games in Hong Kong. There is also increasing evidence that external air quality can also impact negatively on equine respiratory health. Sadly, whilst we know that air quality in stables is usually poor, the air outside is rarely that much better. Whilst heart disease is the most common cause of death in people, human asthma is the most common disease in the world.


Scientific study

Does stabling young horses and feeding them hay induce airway inflammation?


The experiment

18 month old Arabian horses were housed for three months either in the stable or at pasture.
The level of airway inflammation was evaluated monthly.


The results

It was found that the horses kept stabled showed an increased number of neutrophils in the air passages and suffered from prolongation of upper airway inflammation; inflammation of the guttural pouches.


The conclusion

Environmental dusts and antigens play a distinct role in poor equine respiratory health.


Environmental cooling and air filtration technical specification


  • Air Flow 4 m³/s
  • Covers approximately 300 m²
  • Power input 1.5 KW
  • Operating weight 90 KG
  • Height 1000 mm
  • Width 1100 mm
  • Depth 1100 mm


Performance


  • @30°C 40%RH
  • Temperature drop 9°C
  • Cooling Effect 34 KW
  • Water usage 70 L/Hr



Warranty
2 years on all parts


Find out more
To find out more about the advantages of evaporative air cooling and filtration for horses, take a tour of this site or contact us to talk through your options, we’re always happy to help.
